Super Intelligence Blackbox Technology

Hydrogen-rich and Fast-heating Water Purification and Dispensin

Reverse Osmosis Water Purification and Dispensing Machine W25


Enjoy a smart life Take care of the health of the whole family


Technology of super-concentration hydrogen-rich water by physically dissolved hydrogen nano-bubbles Aerospace Technology Reverse Osmosis Purification Technology The third generation of 3-second instant heating with rare earth technology, water temperature changed in different stages.
The third generation of 3-second instant heating with rare earth technology, water temperature changed in different stages Built-in LED UVC sterilization, visual indication 200G high flux membrane + built-in large water tank, fastly and continuously supplying for many people.


One machine with several functions
Upgrading new ways to drink water

Setting the filtration, heating and cooling, hydrogen-rich water as one. This machine fuses the filter of water purifier, heating and cooling of water dispenser and hydrogen production of hydrogen-rich water purifier. The body is small, powerful, does not need to install, and can move as you like.

Advantages: Heating when turn on immediately; Multi-stage temperature control; The high quality of water; Hydrogen-rich water with bubbles.
Comparison: No high cost of core-changing; No stale taste of water; No waiting time for the boiled water; No waiting time for water cooling; No long time of hydrogen production; No bubble free.


It is so big as to meet more people’s continuous use
Big raw water tank, high flux RO membrane, large built-in pure water tank


The water quality is safer

In the long-term use of the water machine, harmful substances such as bacteria and chlorine will remain. After the use time reaches a certain level, it will breed bacteria and cause secondary pollution.

UVC sterilization
Built-in UVC lamp with visual indication has bactericidal and bacteriostatic functions, and ensures water quality safety (can solve the industry problem of COD exceeding the standard)

The cover on built-in water tank can be opened for cleaning
Removable water tank, long-term use will lead to a small amount of sediment inside the tank, and the cover of this machine can be removed for water tank cleaning


Preparation of hydrogen-rich water with bubbles by SPE Electrolysis Technology 4.0

Water is electrolyzed into hydrogen-rich water, so that the water molecules are evenly coated with hydrogen molecules, promoting that stable combination of hydrogen and water and making water possess characteristics of high hydrogen concentration, and good stabilit


Overflow instant electrolysis hydrogen production module

Imported proton exchange membrane, supplemented by Pt platinum solid electrolyte on both sides, realizes the separation of hydrogen and oxygen. The hydrogen production is stable, the gas volume is sufficient, the purity is high, and the service life is long.

① Cathode plating
② Anodized coating
③ Imported proton exchange membrane


SPE Electrolysis Technology 4.0

Hydrogen production technology does not stop upgrading


3-grade filter element + 4-layer filtration
Filtration of heavy metals, retention of beneficial minerals

① 2 PAC combining into 1
Filtration of sediment, rust, colloid and other large particulate pollutants, adsorption of small impurities such as colors, odors, residual chlorine and other bacteria, micro-organisms and scale.

② RO membrane
Filtration of sediment, rust, colloid and other large particulate pollutants, adsorption of colors, odors, residual chlorine, and so on.

③ Natural trace mineralized carbon rod filter element
Further adsorption of colors and odors, increasing strontium and other minerals, can enhance the taste of water quality, making water sweet and delicious.

※This machine adopts jettison-type quick-connect filter, which can be installed by itself.

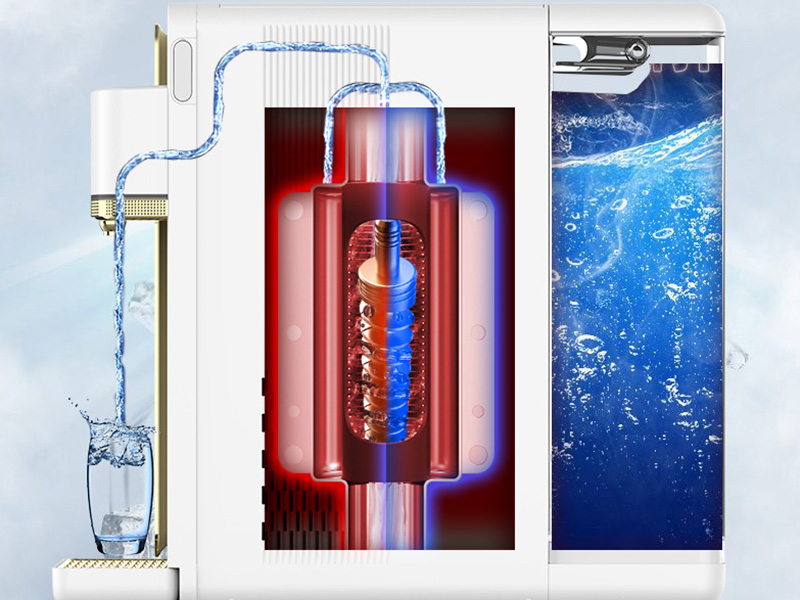

Multi-stage water temperature, hot and cold, meet your needs at any time

· Explosion-proof refined steel core
· Heat quickly penetrates every water molecule.
· The third generation rare earth 3-seconds heat technology, realizes 3 seconds heat.
· In comparison with traditional heating, water quality is fresher and repeated heating can be avoided.


Level 1: PAC composite filter element

Filter material: Polypropylene folding fiber PP cotton + carbon rod
① Intercepting large particles of sediment, rust suspended solids and other impurities in water.
② Removal of residual chlorine, odor, colors, etc.
6-12 months: Recommended replacement cycle

A: Sand, rust
B: Peculiar smell
C: Residual chlorine


Level 2: RO membrane (200G high flux)

Using high-tech space RO technology theoretically assists in purifying the impurity down to 0.0001 microns, and filtering out the bacteria, chemical pesticide residues, radioactive particles, residual chlorine, microorganisms, organic substances and other harmful substances.
12-24 months: Recommended replacement cycle

A: Heterochromatic
B: Minerals
C: Bacteriostatic


Level 3: Natural micro-mineralized carbon rod filter

Water quality characteristics:
·Green and environmental protection, no secondary pollution, no heavy metals exceeding the standard;
·Slightly alkaline, the pH value can be stabilized between 7.0 and 8.5, maintaining a weak alkaline;
·It is rich in trace elements such as potassium, sodium, calcium and magnesium, and it is still mineralized after 15 months of continuous use.
6-12 months: Recommended replacement cycle

A: Heterochromatic
B: Minerals
C: Bacteriostatic


6-stage adjustable
temperature control

·3-second instant heating

For each stage of temperature control, the different needs of tea can be easily met

The kitchen cooks rice and stir-fries with boiling water Friends visit as guests, make a pot of coffee and treat each other Mom and Dad make a cup of green tea in the morning and enjoy the time
Room temperature water meet daily drinking water Husband drinks too much a cup of warm honey water Wake up in the middle of the night, Always ready for milk


Integrated waterway

The original water tank, filter element and purified water tank are connected by integrated water way. The pipeline point is designed to reduce the hidden danger of water leakage, improve the efficiency of water production, reduce the assembly process; Water way can bear 3.6 MPA strong pressure, with less connectors, which makes the machine more reliable and avoids leakage.


Product parameters

Product parameters: Reverse Osmosis Purification and Dispensing Machine
Product model: W25
Rated water yield: 2000L
First-grade filter element: PAC composite filter
Water discharge: 30L/h
Secondary-grade filter element: 200G reverse osmosis membrane filter
Rated voltage/ frequency: 220V~/50Hz
Third-grade filter element: Natural trace mineralized carbon rod filter element
Power consumption: 0.1kw·h/24h
Rated power: 2200W
Applicable temperature: 4-38℃
Boiling water production: 18L/H(≥90℃)
Raw water tank capacity: 6L
Working pressure: 0.4~0.6MPa
Waste water tank capacity: 2.5L
Shell material: ABS
Applicable water source: Municipal tap water

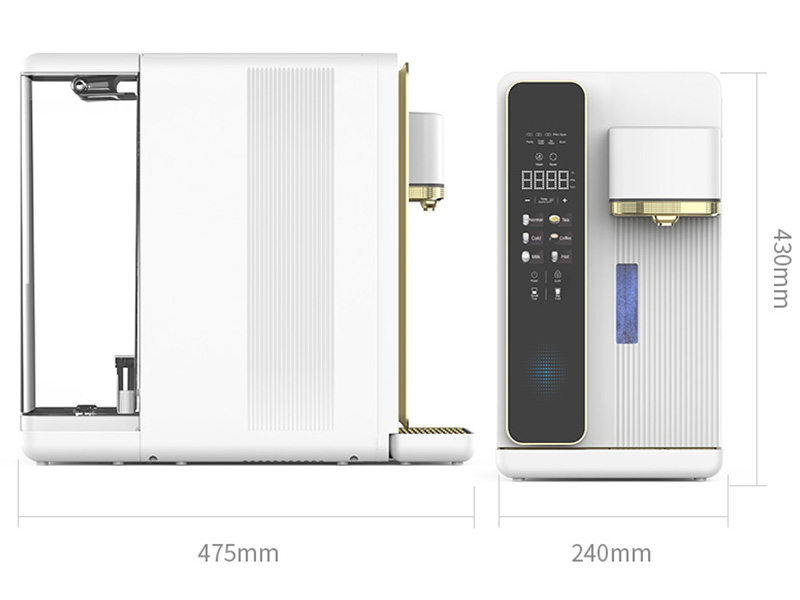

Product Size: 475x240x430mm
